1.65V~3.6V
Date：2020-08-31 Views：1439
|
Status: UD=Under Development； S=Sampling； MP=Mass Production； NR=Not Recommended for new design
|
ZB25WD SpiFlash Family -1.65V to 3.6V;-40℃to 125℃ -1M-bit to 8M-bit -SPI,Dual-SPI -Uniform 4KB,32KB&64KB erase
ZB25WQ SpiFlash Family -1.65V to 3.6V；-40℃to 125℃ -16M-bit -SPI,Dual/Quad SPI -Uniform 4KB,32KB&64KB erase
Ultra Low Power Consumption -0.5uA Deep Power down current -0.5uA Standby Current -2.5mA Active Read current at 50Mhz
High Performance -Maximum Data Transfer Rate:104MHz for SPI,208MHz for Dual,532MHz for Quad -Fast-boot or execute code(XIP)from SPI |

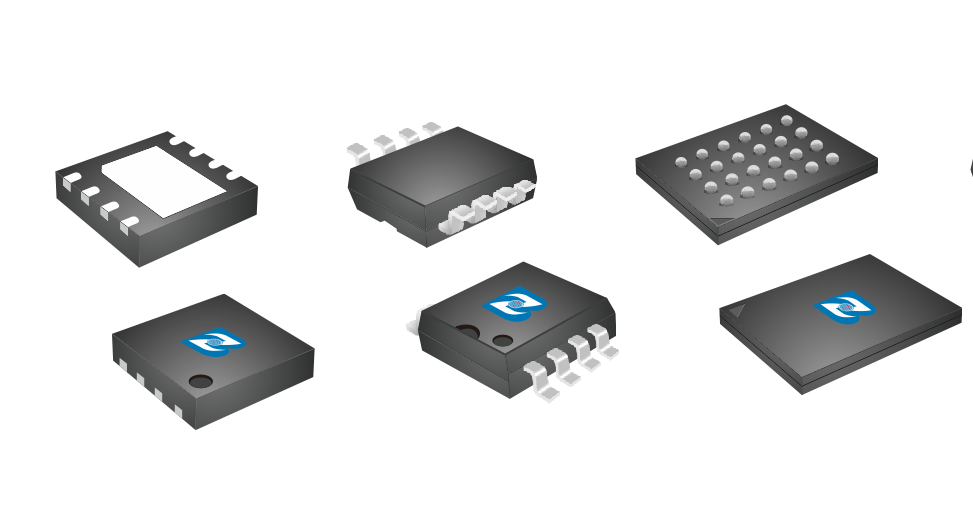

Package Options -Space saving packages:8-pin SOIC,WSON,VSOP,USON,WLCSP,16-pin SOIC,24-ball TFBGA -Known Good Die(KGD)Wafers
Wide Range of Applications -PCs,DVD,BluRay,WLAN,DSL/Cable Modem,Printers, -Hard Drives,Set Top Box,LCD-TV,Mobile Phones, -Bluetooth,GPS,MP3,Meters,DSP,FPGAs and more
|
|
Part NO.
|
Density |
Voltage |
Type |
Speed |
Package |
Status |
|
ZB25WD20/10 |
2Mbit/ 1Mbit |
1.65V-3.6V |
Dual SPI |
100MHz |
SOP8 150mil/SOP8 208mil USON8 1.5*1.5mm/USON8 2*3mm TSSOP8 173mil |
MP |
|
ZB25WD40 |
4Mbit |
1.65V-3.6V |
Dual SPI |
100MHz |
SOP8 150mil/SOP8 208mil USON8 1.5*1.5mm/USON8 2*3mm TSSOP8 173mil |
MP |
|
ZB25WD80 |
8Mbit |
1.65V-3.6V |
Dual SPI |
100MHz |
SOP8 150mil/SOP8 208mil USON8 2*3mm/USON8 4*3mm TSSOP8 173mil |
MP |
|
ZB25WQ16 |
16Mbit |
1.65V-3.6V |
Dual SPI Quad SPI |
133MHz |
SOP8 150mil/SOP8 208mil USON8 2*3mm/USON8 4*3mm TSSOP8 173mil |
S |
